Continuous titanium coil-to-coil polishing line for TA1, TC4 and nickel strip 300–750 mm wide and 0.05–2.0 mm thick, with wet abrasive-belt No.4 finishing and CPC/EPC control.
Need other widths, thicknesses or finishes? Tell us about your project and we will propose the right configuration.

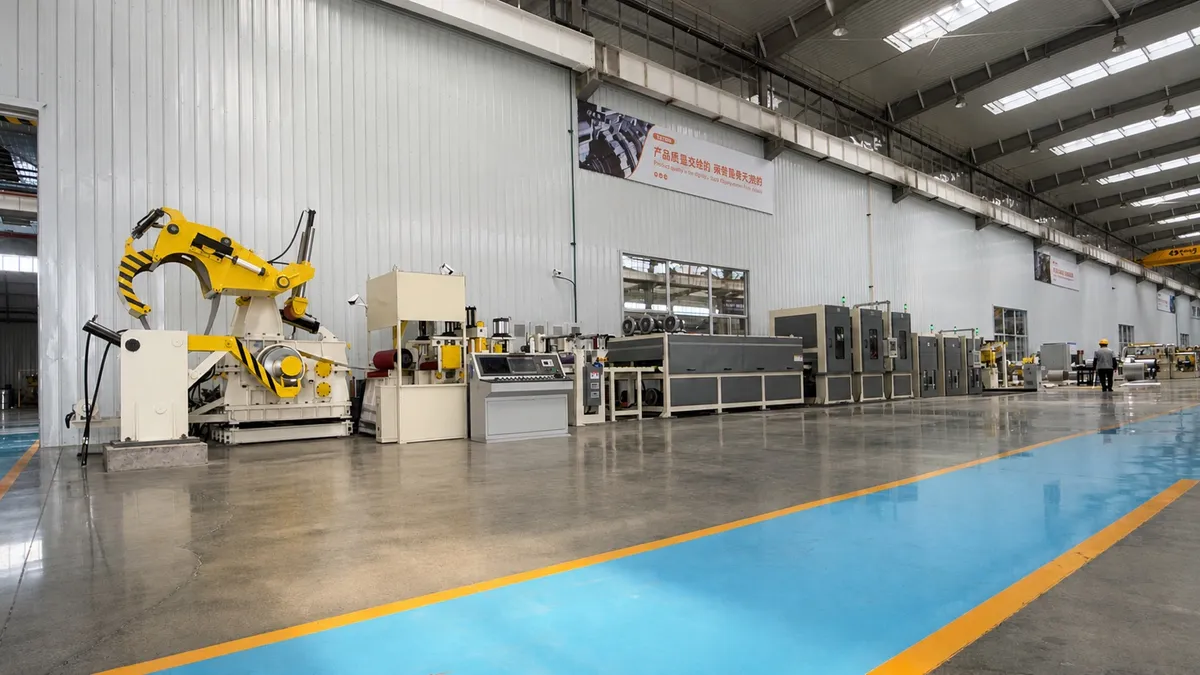

The GLORY MACHINERY 750 Type Titanium Coil-to-Coil Polishing Line is a continuous surface finishing system designed for industrial titanium coil processing — especially TA1, TC4 and nickel-based materials. The line integrates decoiling, strip guiding, polishing, cleaning, drying, protective film coating and recoiling into a fully continuous coil-to-coil process controlled by a centralized PLC system.
The documented processing window is strip 300–750 mm wide and 0.05–2.0 mm thick, with a maximum coil weight of 10 metric tons. Wet abrasive-belt polishing controls heat and keeps the surface stable, producing a consistent industrial No.4 finish on titanium strip; the enclosed stations polish both sides of the strip.

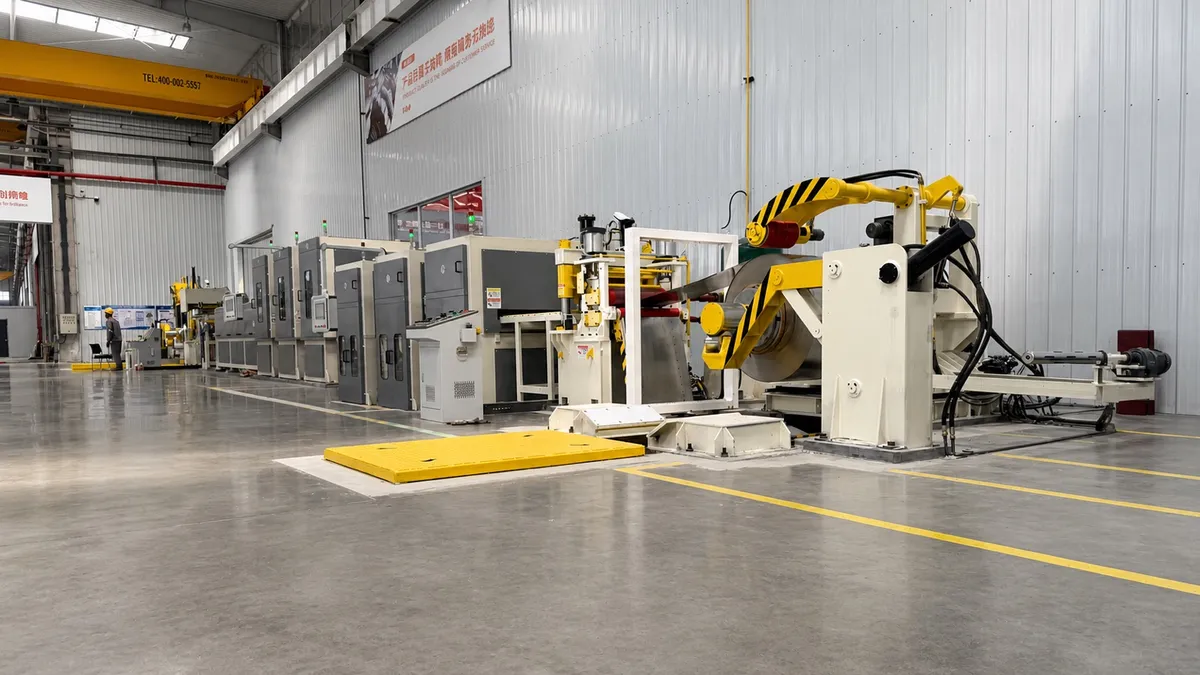

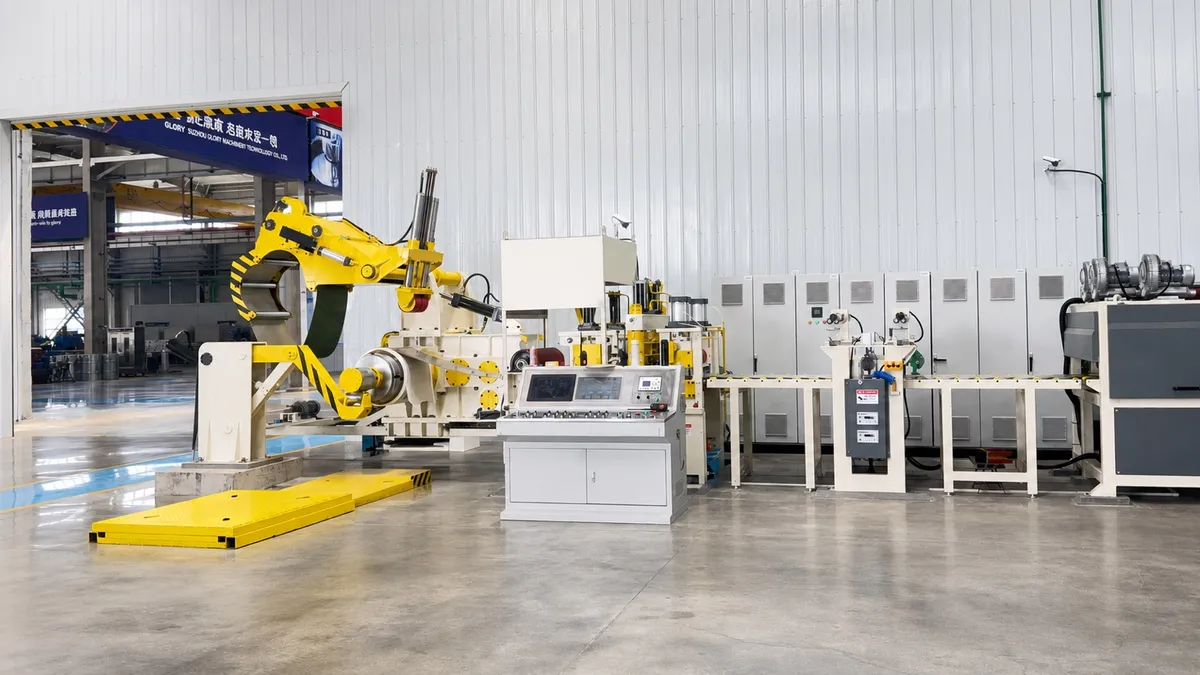

Strip position is controlled at both ends of the line: a CPC system on the cantilever decoiler aligns the strip at entry, and a CCD-based EPC system controls coil-edge alignment at the recoiler. After polishing, the strip is washed, dried and protected by an automatic double-sided film laminator with automatic cutting.
Documented line data includes a working speed of 5–60 m/min with stepless regulation, abrasive belts of 2620 × 900 mm in 120#–240# grit, and a stated total installed power of approximately 430 kW on a 380 V / 50 Hz / 3-phase supply. One reference line of this type is installed in Baoji, Shaanxi. Final performance depends on material grade, incoming surface condition, abrasive configuration and process parameters.
Marked parameters are to be confirmed against the technical agreement of each project.
| Parameter | Value |
|---|---|
| Raw material | Titanium TA1, titanium TC4, nickel |
| Strip width | 300–750 mm |
| Strip thickness | 0.05–2.0 mm |
| Maximum coil weight | 10 metric tons |
| Incoming coil ID | Φ480–Φ520 mm (Φ610 mm sleeve also documented) |
| Finished coil ID | Φ508 mm |
| Maximum incoming coil OD | ≤ Φ1500 mm |
| Working speed | 5–60 m/min with stepless regulation |
| Abrasive belt | 2620 × 900 mm, grit 120#–240# |
| Total installed power | Approx. 430 kW |
| Power supply | 380 V / 50 Hz / 3 phase |
| Alignment | CPC at entry; EPC with CCD detection at recoiler |
| Control | Central PLC with HMI touchscreen; manual / automatic modes |
The technical source identifies TA1 titanium, TC4 titanium and nickel as process materials for this line type.
Enclosed wet polishing stations reduce thermal deformation and improve titanium surface uniformity.

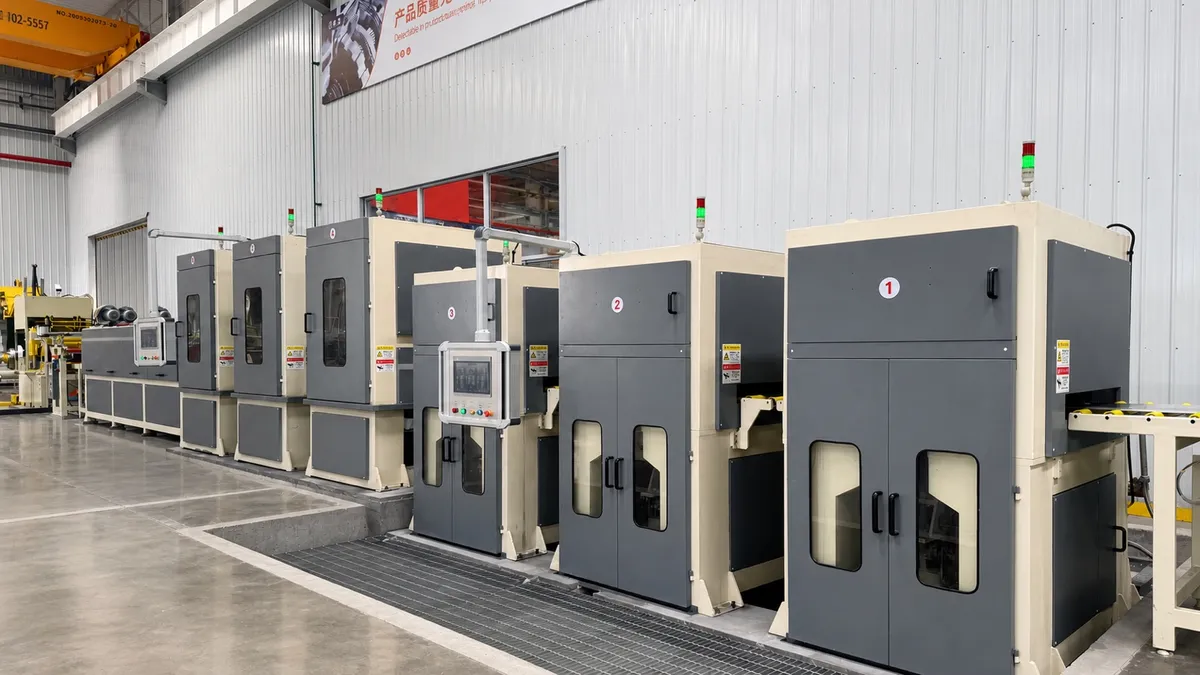

Polishing stations are arranged for both strip sides within the enclosed wet polishing section.
CPC controls strip position at entry, while CCD-based EPC detection supports edge-position control during recoiling.

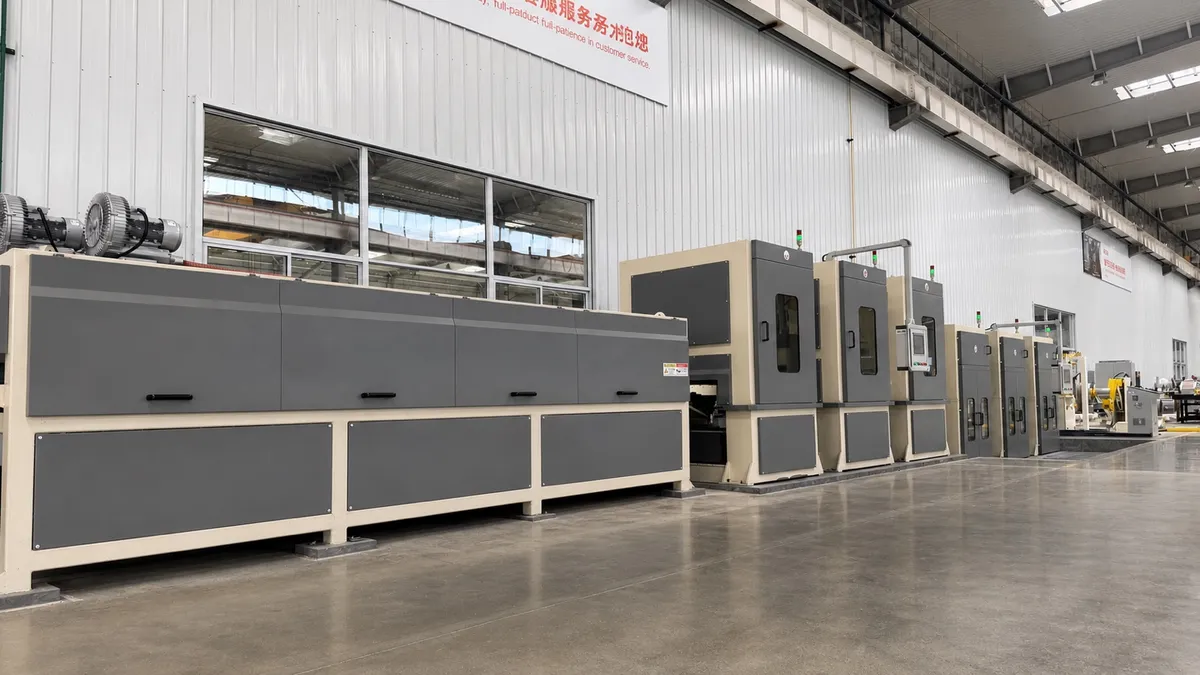

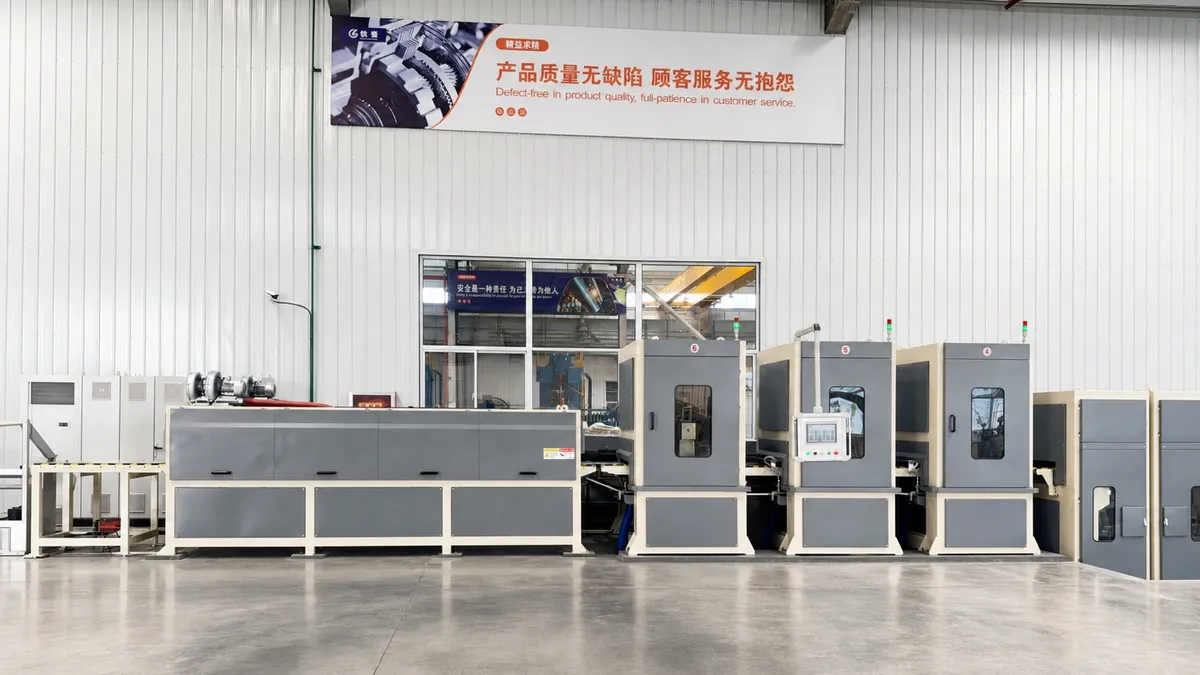

Brush washing, spray cleaning, drying and double-sided film lamination with automatic cutting finish and protect the strip in line.
