Continuous coil-to-coil 8K mirror polishing line with a 31-group rotary disc polishing section, producing No.8/8K mirror stainless steel coil 600–1,550 mm wide at 5–20 m/min.
Need other widths, thicknesses or finishes? Tell us about your project and we will propose the right configuration.

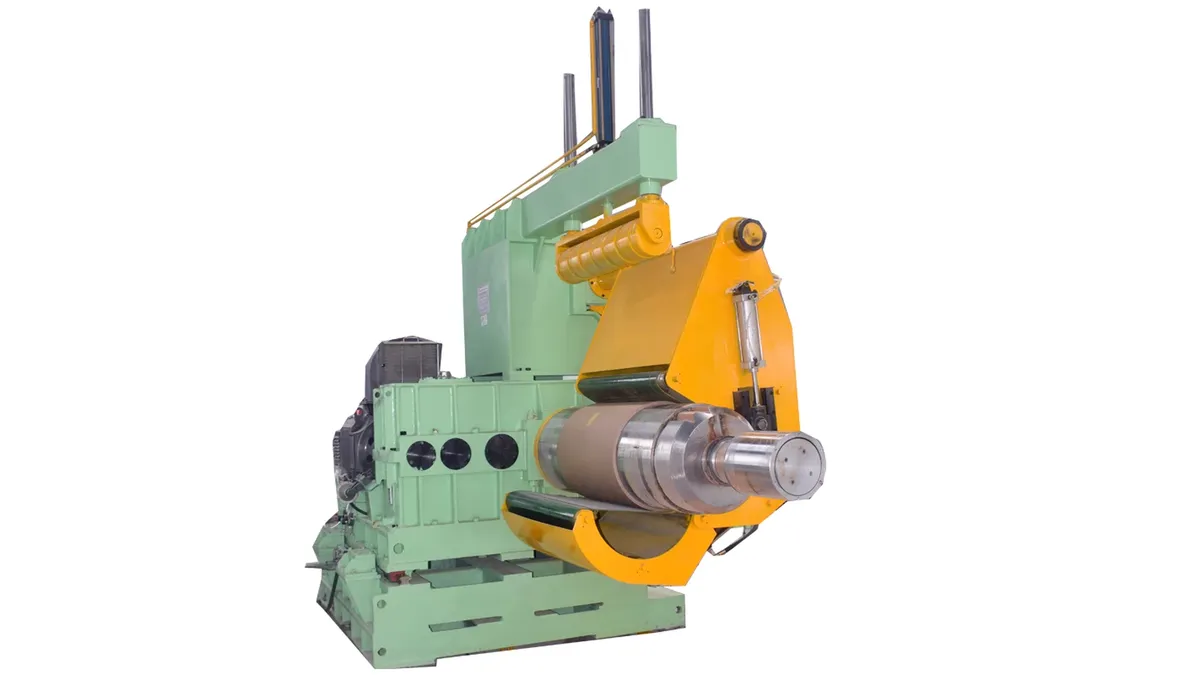

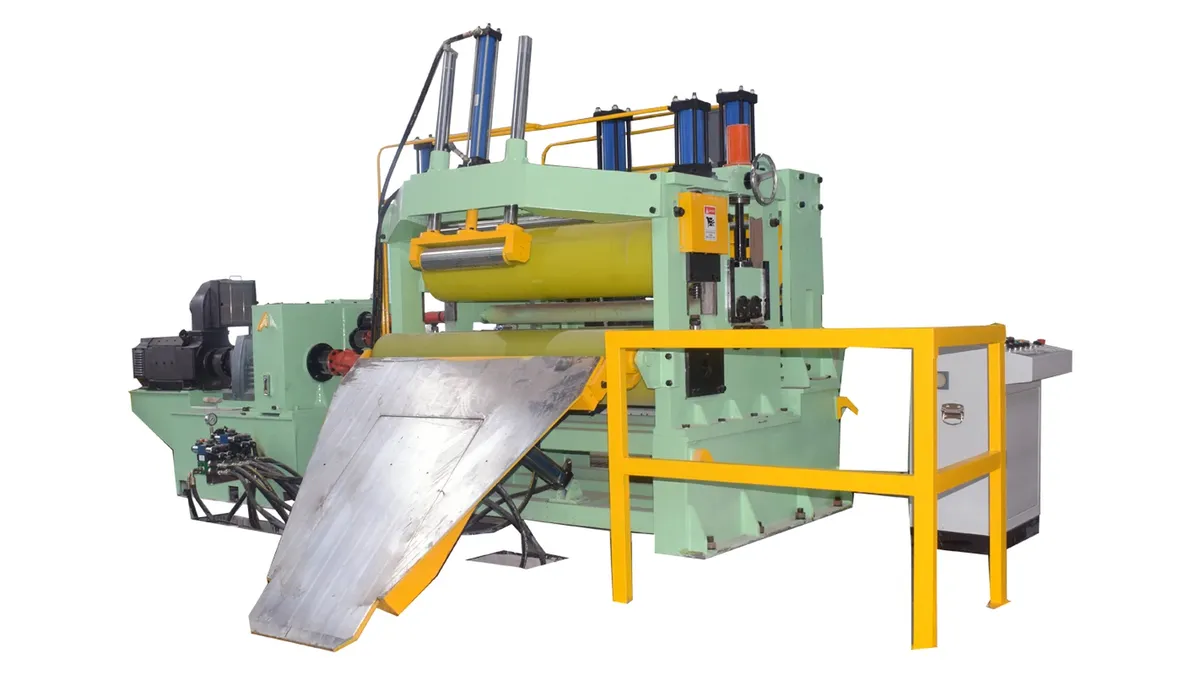

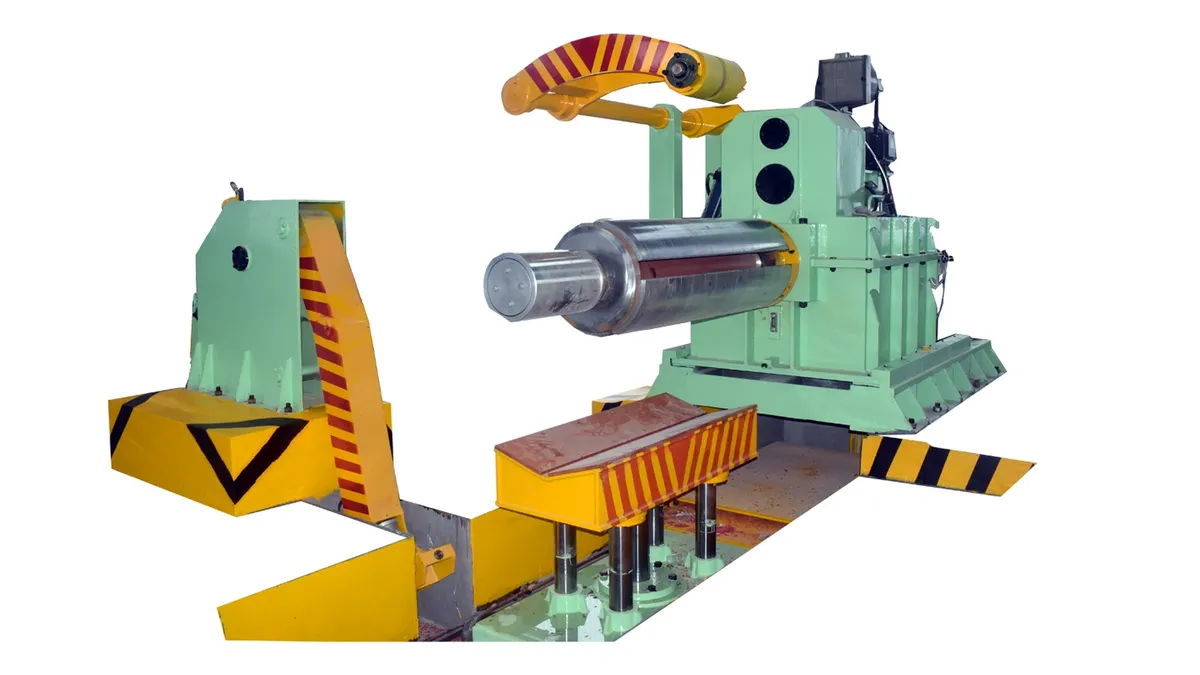

The GLORY MACHINERY 1600 type coil-to-coil 8K mirror polishing machine line is engineered for continuous production of No.8 / 8K mirror-finished stainless steel coil. The line integrates heavy-duty coil handling, strip leveling and guiding, SB surface preparation, multi-stage rotary disc polishing, process-liquid control, cleaning, drying, film lamination and precision recoiling.

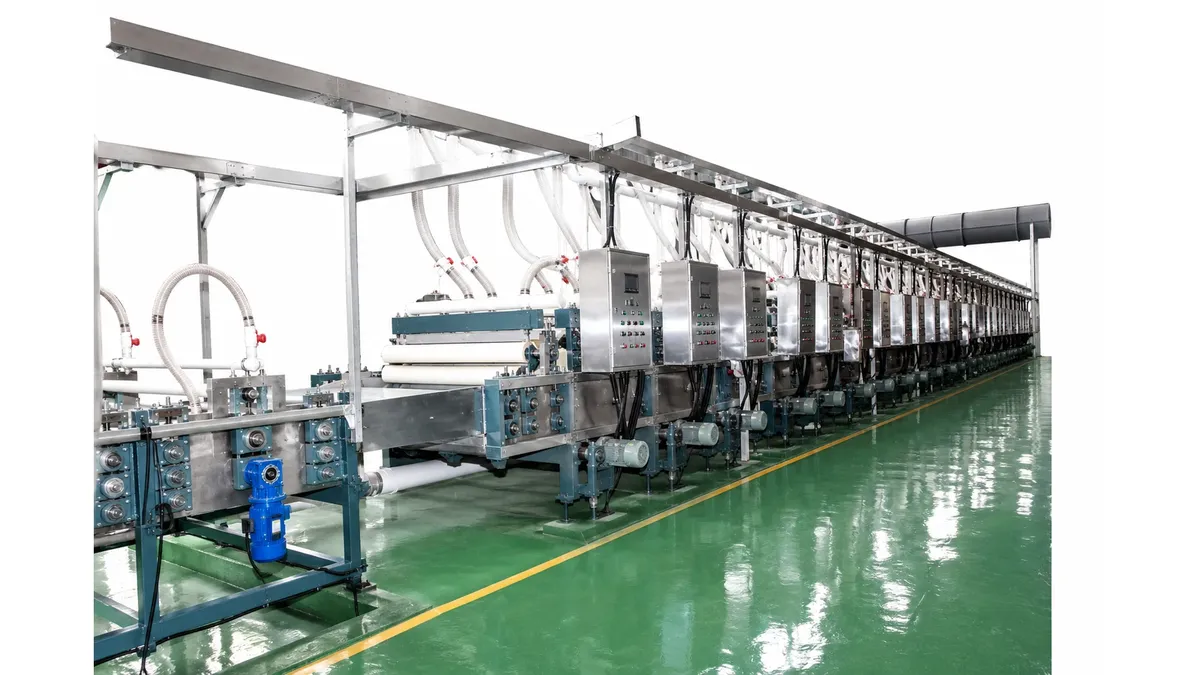

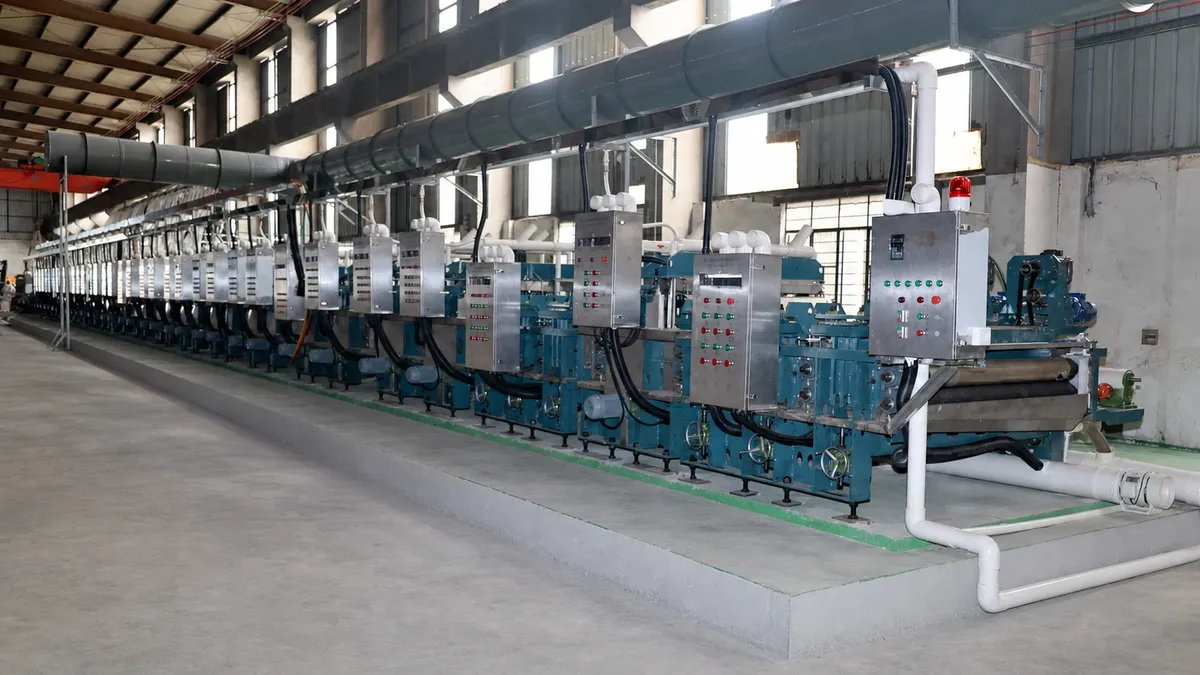

The polishing heart of the line is a 31-group section: 6 groups of SB oscillating machines for rough polishing, followed by 25 groups of rotary disc machines (oblique, double-disc rough, double-disc fine and light-duty fine configurations) that build the mirror finish in stages.
Compared with sheet polishing, continuous coil polishing requires stricter control of slurry, polishing residue, strip stability and cleaning. The staged process is designed to maintain a uniform polishing path while reducing the risk of scratches, polishing-head vibration and surface inconsistency.
The line is documented for stainless steel coil 0.3–3.0 mm thick and 600–1,550 mm wide, with coil weight up to 25 t, production speed of 5–20 m/min and installed power of approximately 1,048 kW. A Siemens PLC coordinates the equipment and can integrate temperature, acidity and pressure monitoring. Final speed and mirror quality depend on the incoming material, consumables, process settings and the approved surface sample.
Marked parameters are to be confirmed against the technical agreement of each project.
| Parameter | Value |
|---|---|
| Material | Stainless steel coil |
| Coil thickness | 0.3–3.0 mm |
| Coil width | 600–1,550 mm |
| Coil weight | ≤25 t |
| Coil ID / OD | Ø508 mm / ≤Ø1,800 mm |
| Production speed | 5–20 m/min |
| Polishing section | 31 groups: 6 SB oscillating groups + 25 rotary disc groups |
| Installed power | Approx. 1,048 kW |
| Power supply | 3-phase 380 V AC ±5%; 50 Hz ±1% |
| Control system | Siemens PLC |
| Recommended operators | 3 operators |
Developed from more than ten years of practical 8K production experience, addressing the main difficulties of continuous coil mirror polishing.
An integrated cast-steel machine frame and assembly accuracy within 1 mm provide a stable base for uniform polishing contact.
Special bearing support, balanced rotary components and leakage monitoring support smoother high-speed operation with less vibration.
Nitric-acid-resistant grease, mechanical isolation and triple-seal protection help reduce chemical corrosion around polishing-head bearings.
Two-machine modules with transition sections provide safer access, faster wheel changes and flexible adjustment of rough- and fine-polishing combinations.
Oscillating high-pressure spray cleaning is followed by film handling and a high-specification rear coil-handling system with EPC alignment.
