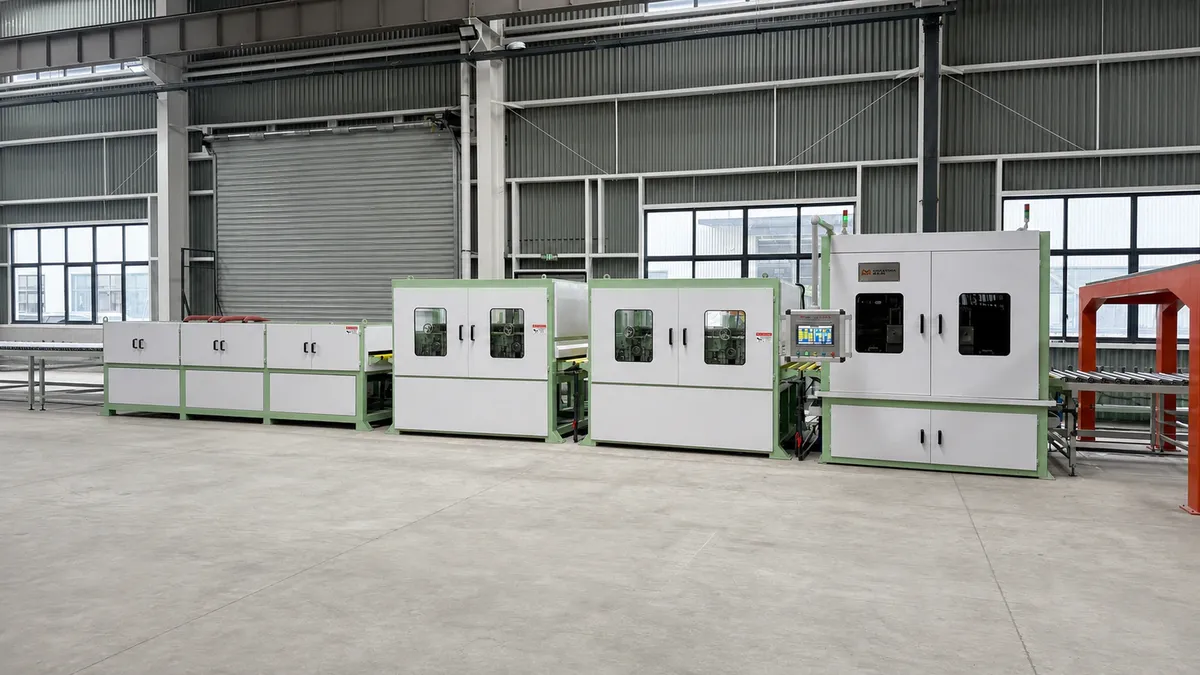

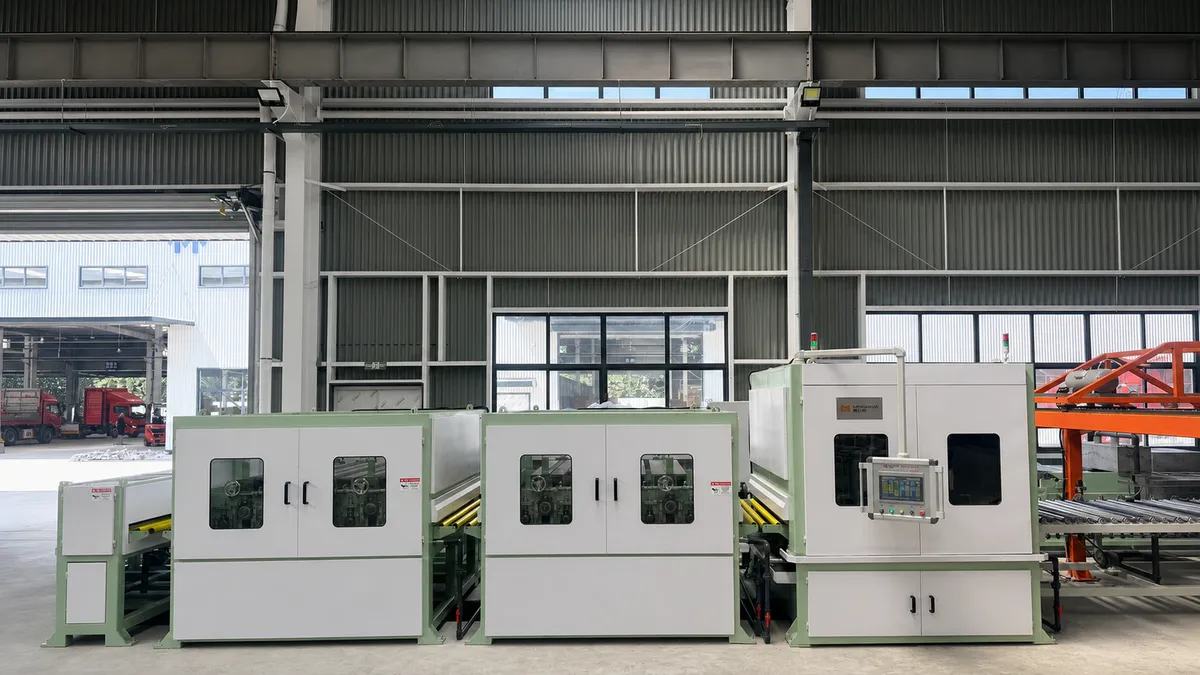

1600 oil-wet sheet-to-sheet polishing and grinding line with servo suction loading and unloading, double No.4 polishing heads and a brushing section for Scotch-Brite finishes.
Need other widths, thicknesses or finishes? Tell us about your project and we will propose the right configuration.
The 1600 oil-wet-type sheet-to-sheet polishing and grinding line integrates automatic sheet handling, edge-burr removal, abrasive-belt polishing, brushing, cleaning, drying and protective-film lamination for stainless steel sheet production.

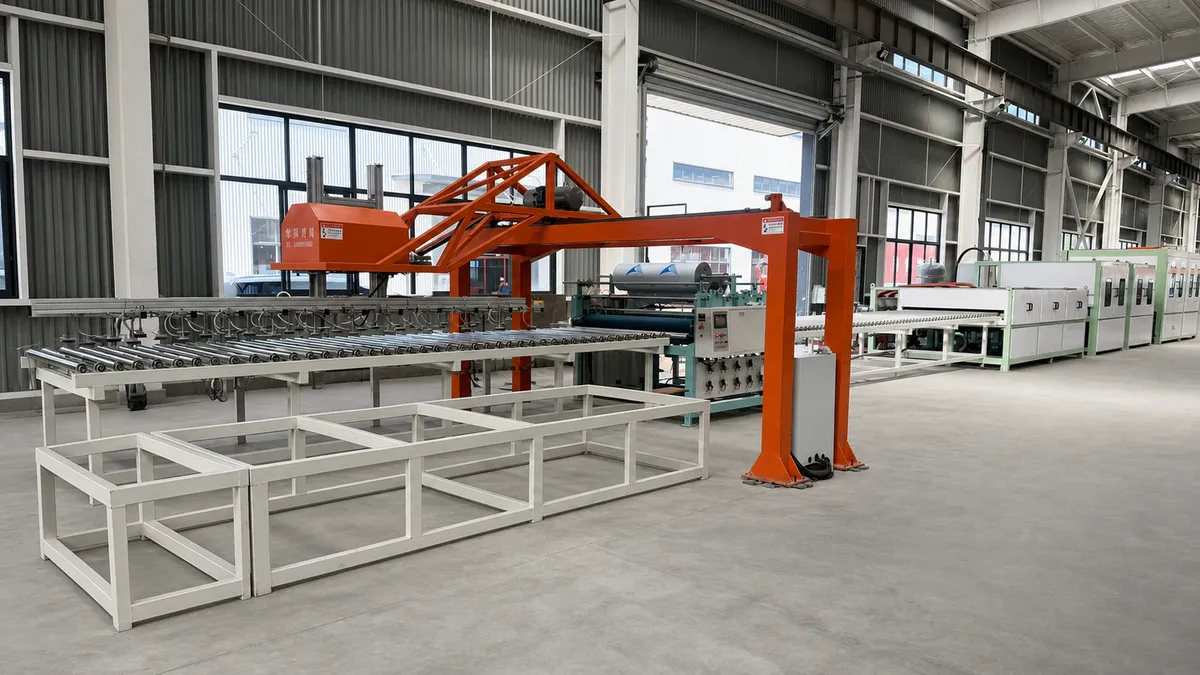

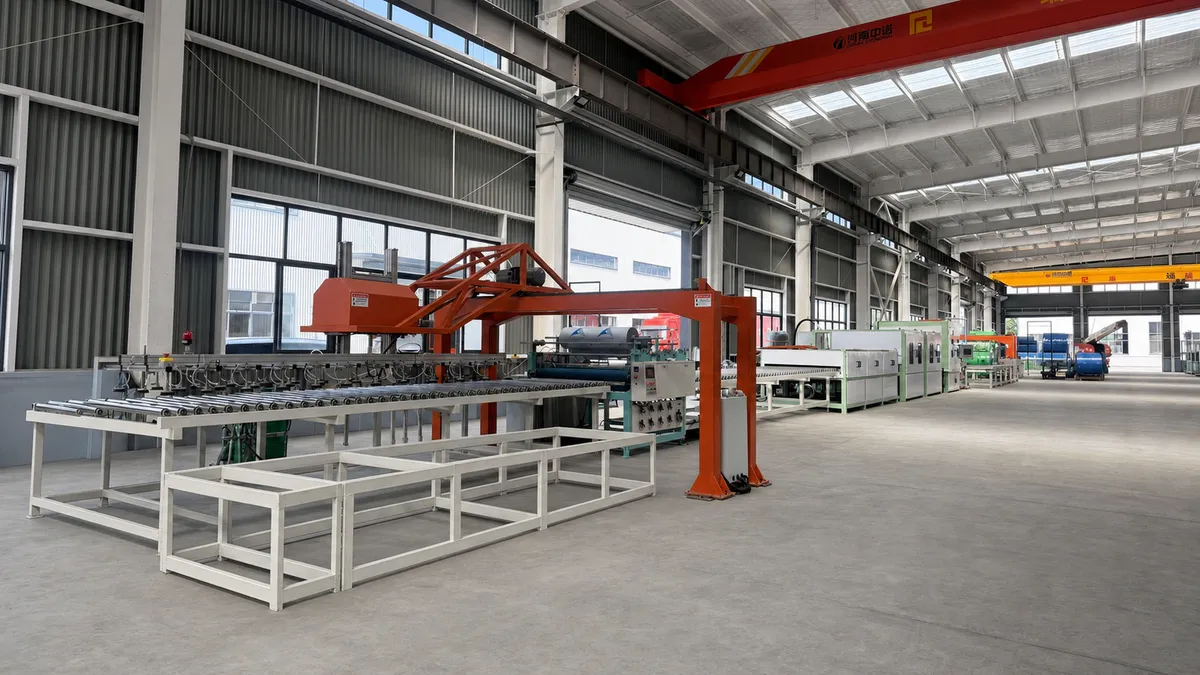

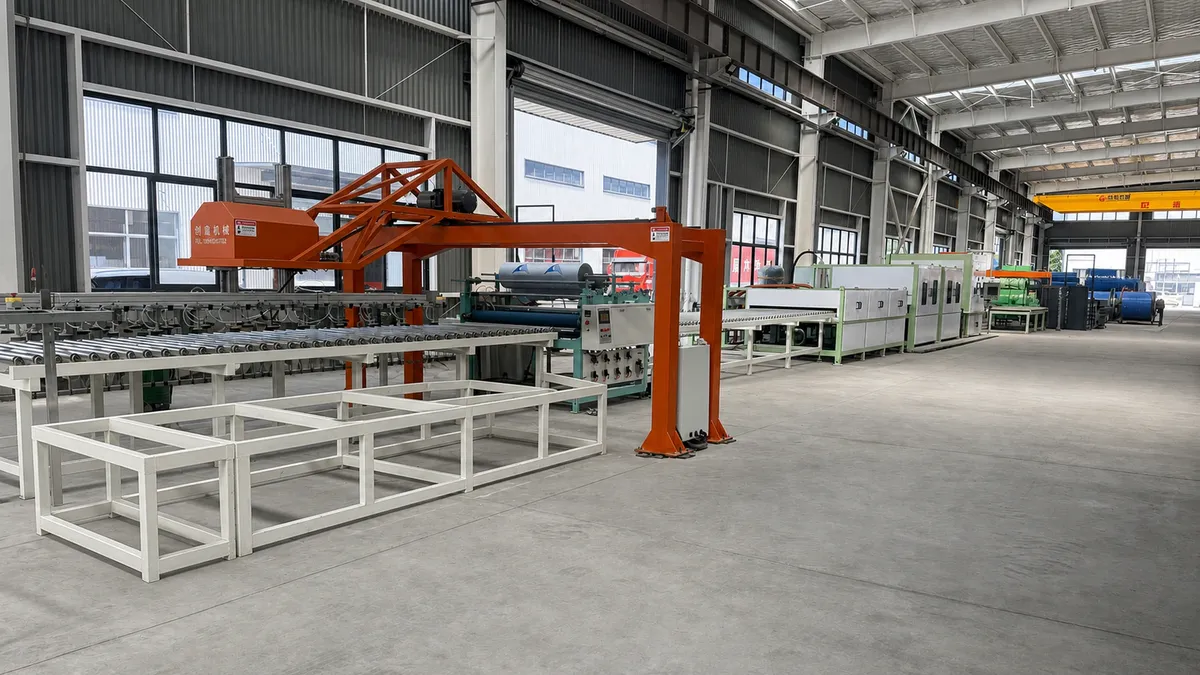

Servo-driven suction loading and unloading give controlled sheet transfer through the whole process. Sheets are handled automatically from the 5 m conveyor roller table, through edge treatment and polishing, to unloading — reducing manual handling and surface damage.
The documented incoming materials are 430, 439, 445, 304, 316 and 200-series stainless steels with 2B or BA surfaces. The line processes sheets 300–1550 mm wide, up to W1550 × L4000 mm, and 0.4–3.0 mm thick, at a documented line speed of 20 m/min with stepless regulation.
Process control is by PLC, touchscreen, sensors and frequency-controlled drives, with manual and automatic operating modes. Safety interlocks, alarms, a light curtain and infrared detection are described in the source configuration.
Marked parameters are to be confirmed against the technical agreement of each project.
| Parameter | Value |
|---|---|
| Machine type | 1600 oil-wet-type sheet-to-sheet polishing and grinding line |
| Sheet width | 300–1,550 mm |
| Maximum sheet size | W1550 × L4000 mm |
| Raw-material thickness | 0.4–3.0 mm |
| Line speed | 20 m/min, stepless regulation |
| Abrasive belt | 2620 × 1580 mm |
| Abrasive grit | 120#–240# |
| Installed power | Approx. 245 kW |
| Power supply | 3-phase, 380 VAC ±10%, 50 Hz ±1% |
| Compressed air | 0.7 MPa, 1 m³/min (supplied by customer) |
| Documented finishes | No.4 and Scotch-Brite (SB) |

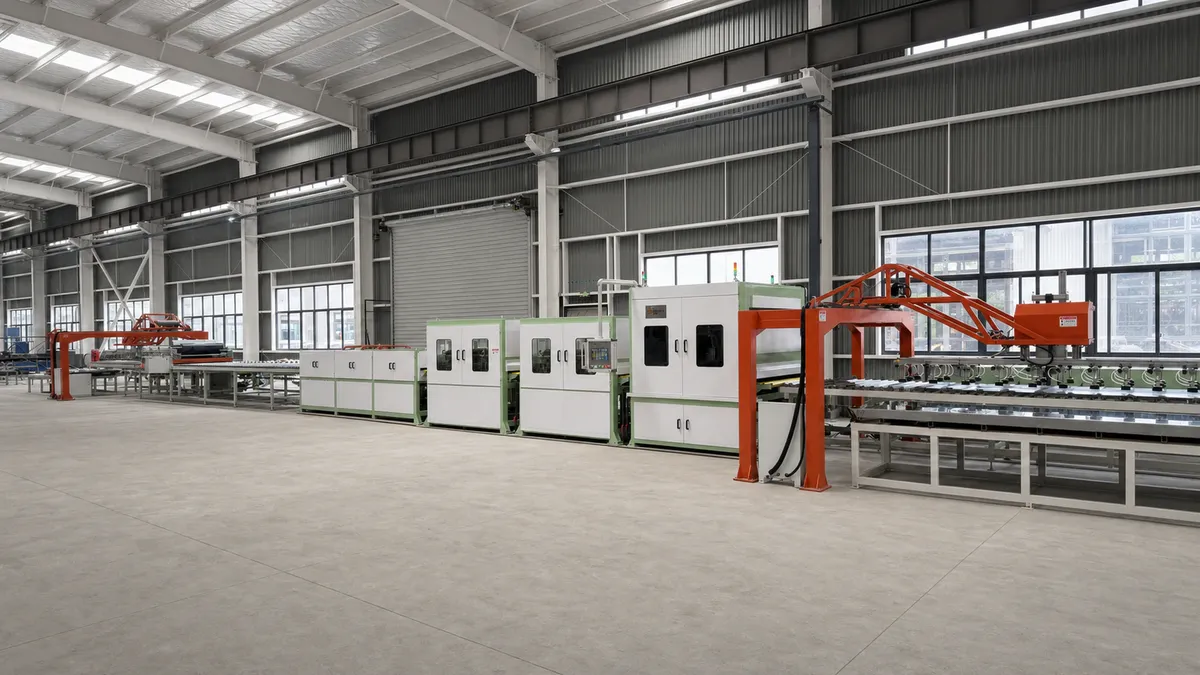

One line connects sheet loading, edge treatment, polishing, brushing, cleaning, drying, film lamination and unloading.
Servo-driven suction loading and unloading support controlled sheet transfer through the production process.
PLC, touchscreen, sensors and frequency-controlled drives support stable manual and automatic operation.
